Explore Our Fire Protection Innovations

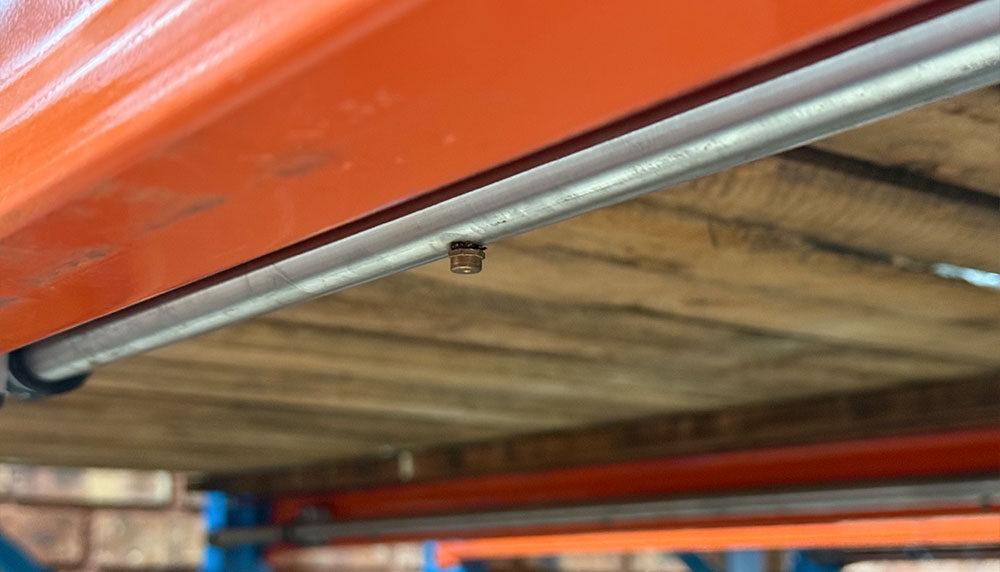

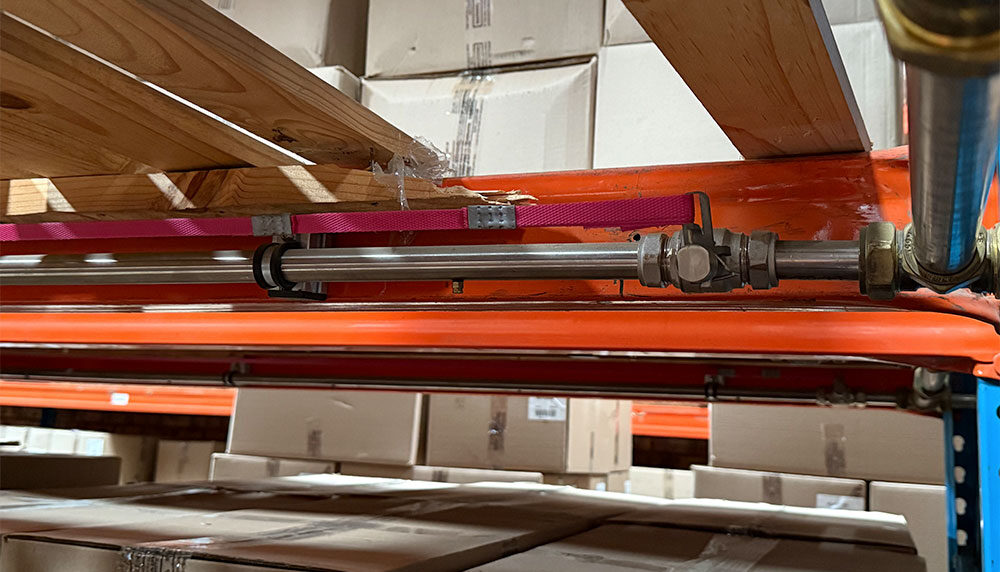

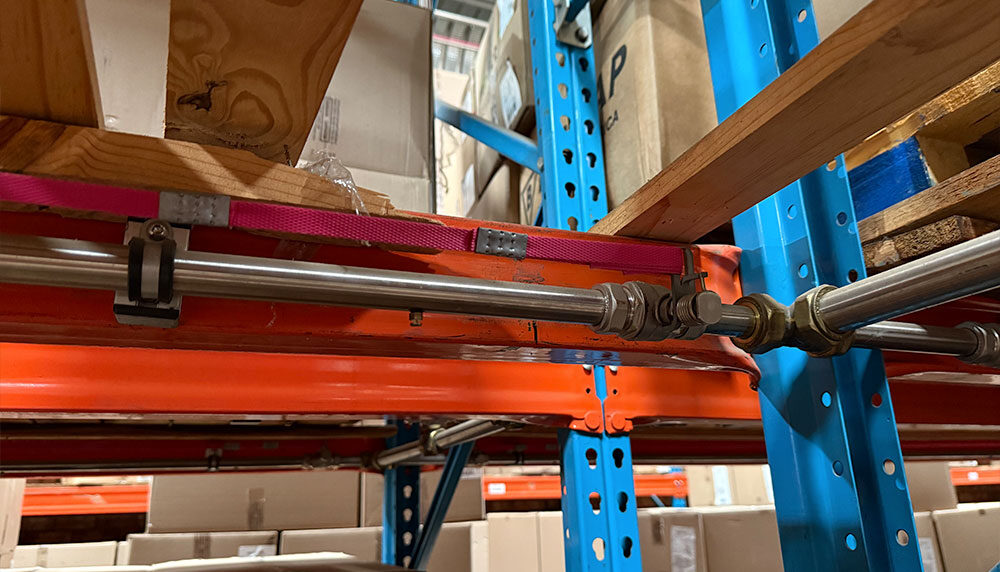

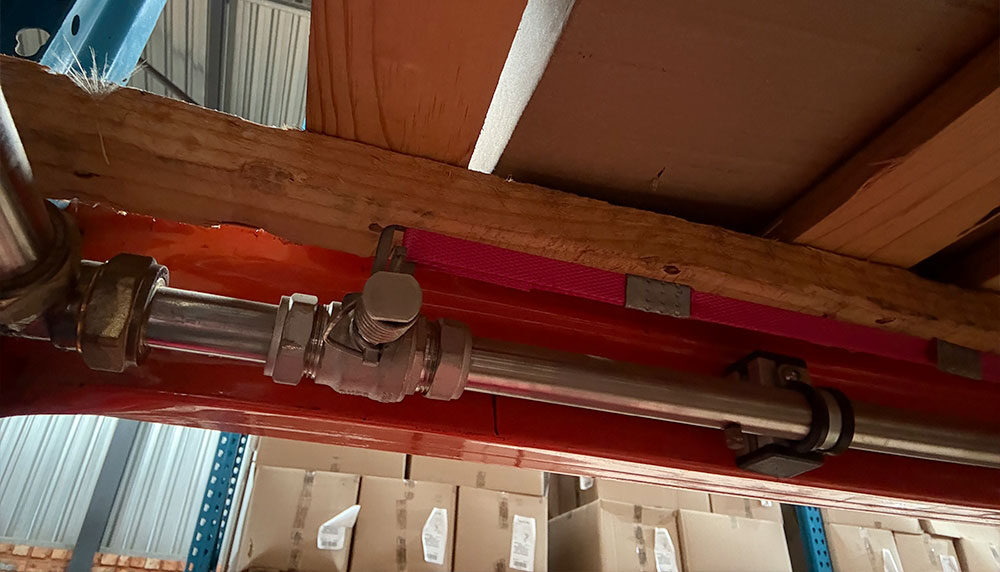

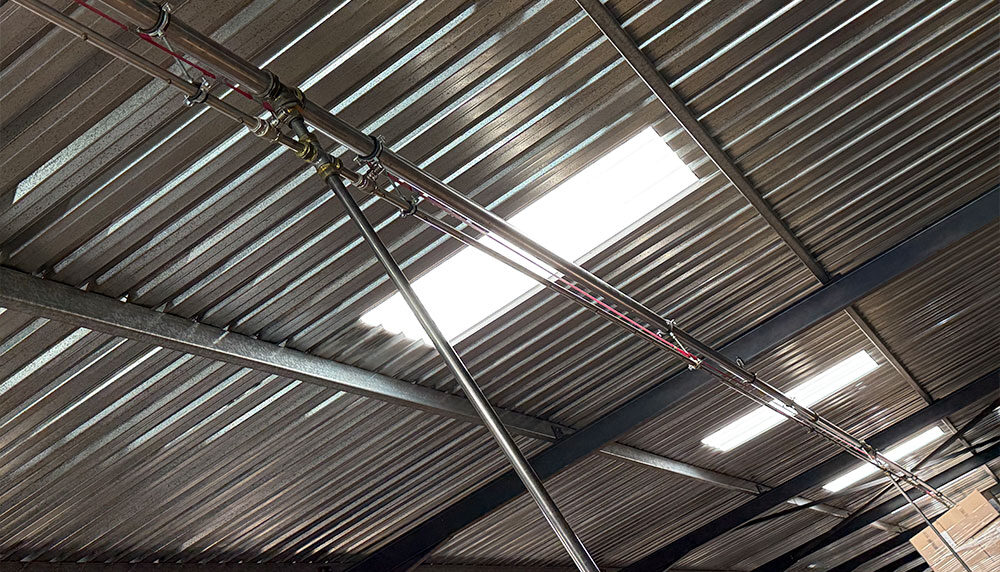

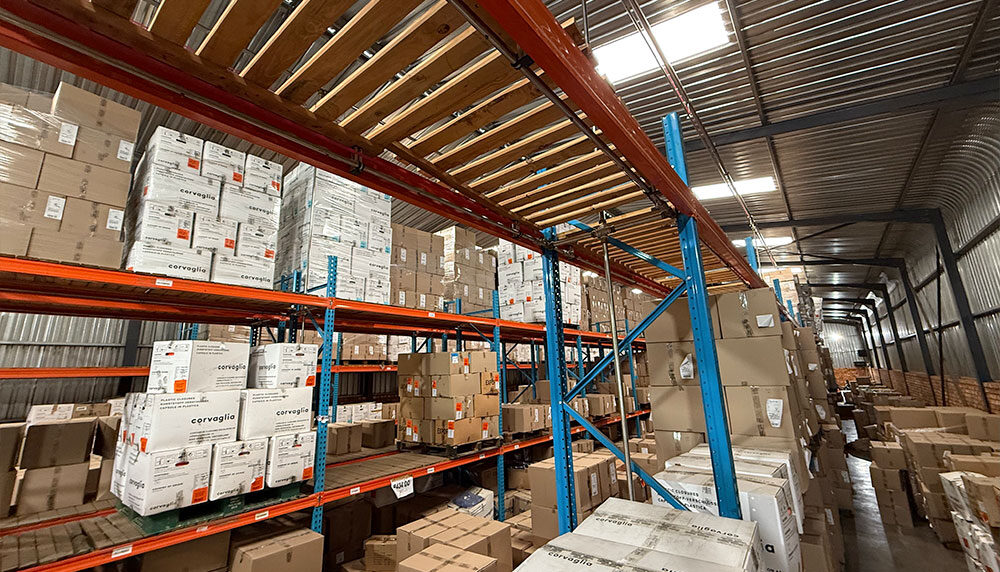

TSS In-Rack System

Revolutionizing Fire Protection in High-Stack Warehouses

Designed as a superior alternative to conventional in-rack sprinkler systems, the TSS In-Rack System offers unparalleled fire detection, activation, and suppression in industrial and high-stacking warehouse environments. With early fire detection, rapid activation, and precision-targeted suppression, this Agrément Certified system ensures maximum fire mitigation while using significantly less water, reducing operational costs and potential water damage.

Why the TSS In-Rack System is Superior

✔ Proximity-Based Suppression – The system is strategically installed close to combustible goods (inventory), ensuring precise fire suppression at the source rather than relying on general area coverage.

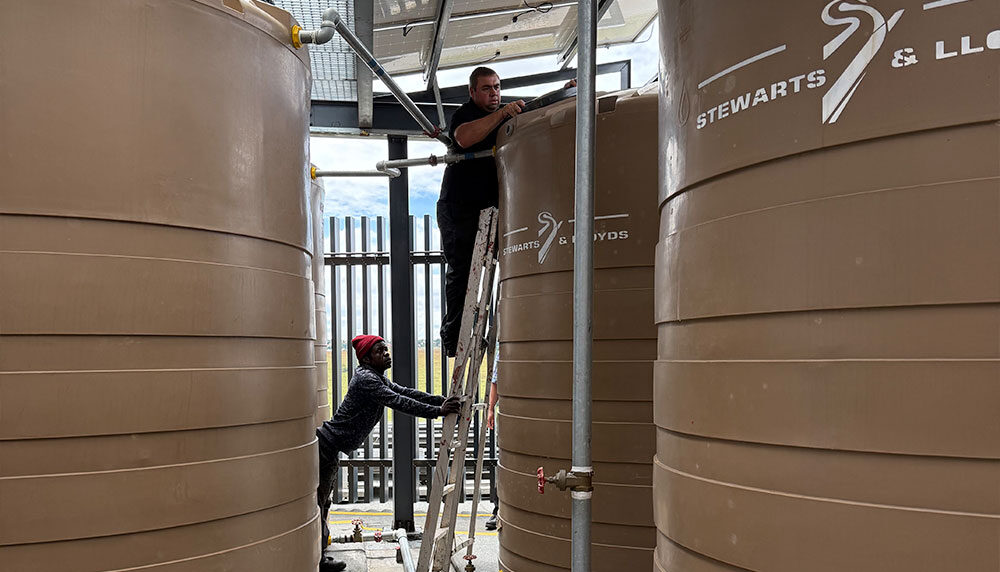

✔ Minimal Water Usage – By integrating a meeting agent into the water tanks, the system enhances suppression efficiency while drastically reducing water requirements.

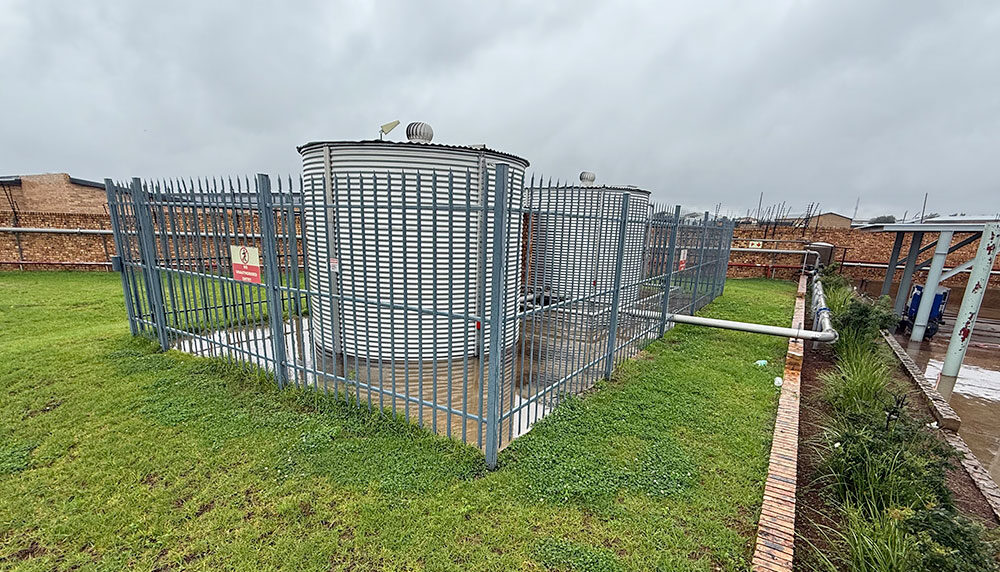

• Conventional sprinkler systems require between 500,000L – 1,200,000L of water. The TSS In-Rack System requires only 50,000L of water, offering excellent protection with up to 95% less water usage than conventional systems.

✔ Modular & Scalable Design – The system is fully modular, allowing for easy relocation, expansion, and reconfiguration without major structural modifications. This makes it ideal for growing warehouse operations.

✔ Unmatched Durability – Built with high-quality, corrosion-resistant materials, the TSS In-Rack System lasts 50+ years, far surpassing the 10–15-year lifespan of conventional systems.

Key System Features

• Automatic In-Rack Deluge System – Pipes remain dry until fire activation, preventing accidental leaks or corrosion.
• No Height or Level Restrictions – Effectively protects warehouses with multiple stacked rack levels.
• Certified by Agrément South Africa – Recognized for its scientific and engineering excellence in fire safety.
• Minimal Area of Operation – Focused suppression directly at the fire source, reducing collateral damage.
• Modular & Efficient Protection for High-Risk Storage
  The TSS® In-Rack System offers precision suppression, keeping inventory and assets safe while ensuring minimal water spillage. With a modular design, it allows for quick installation, flexibility in warehouse configurations, and long-term reliability.

Enhance your warehouse fire protection with the patented TSS In-Rack System—engineered for early detection, rapid activation, and superior efficiency in high-stacking environments.

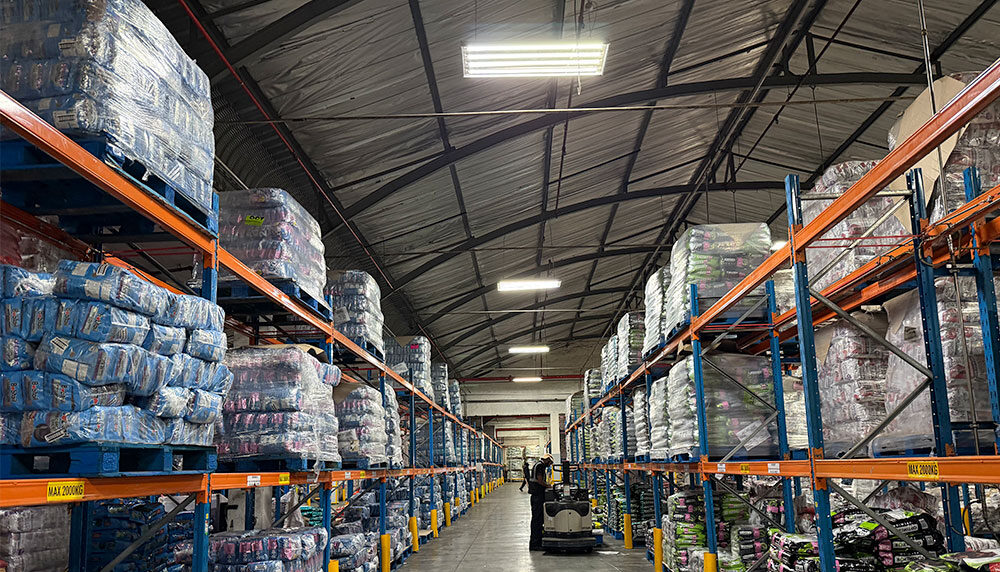

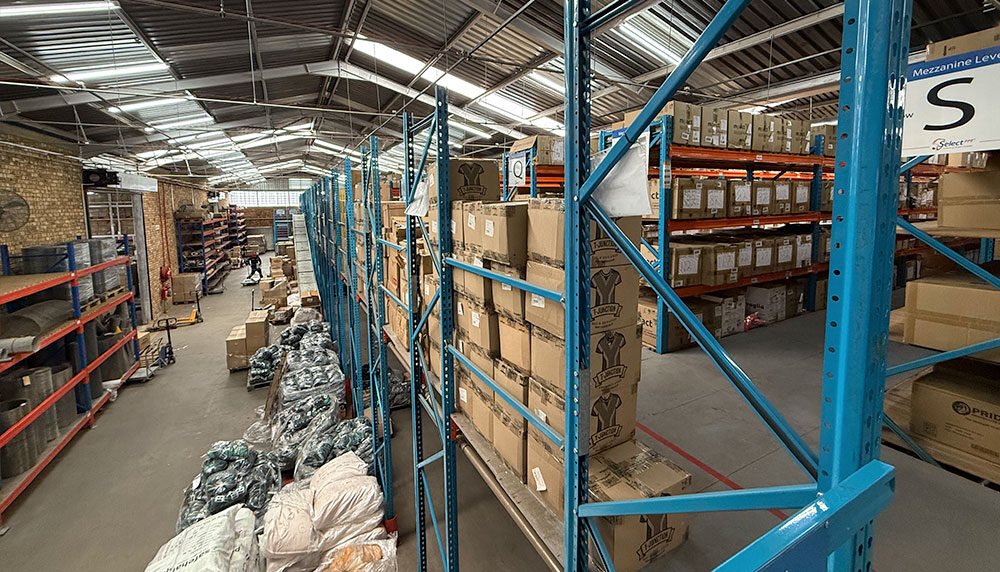

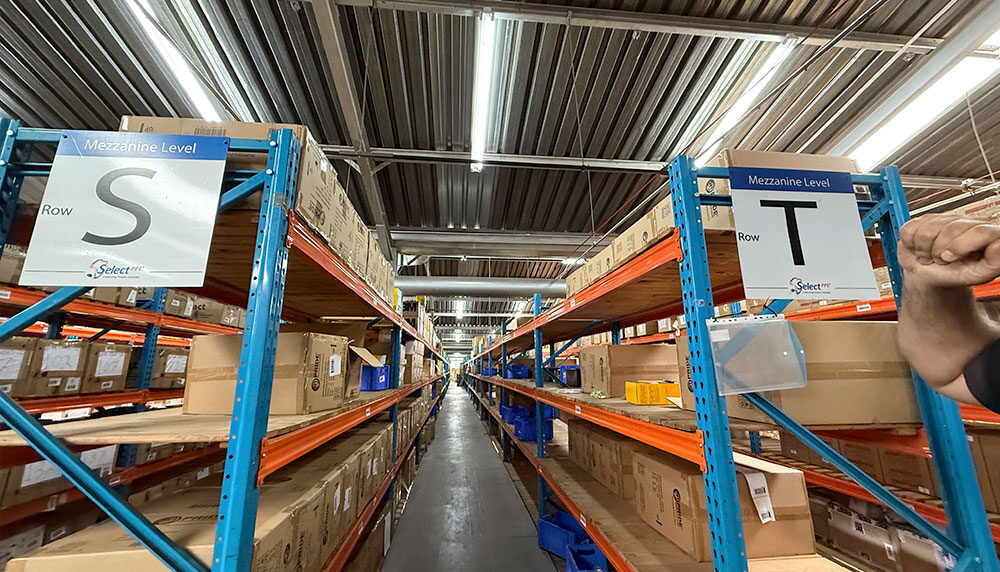

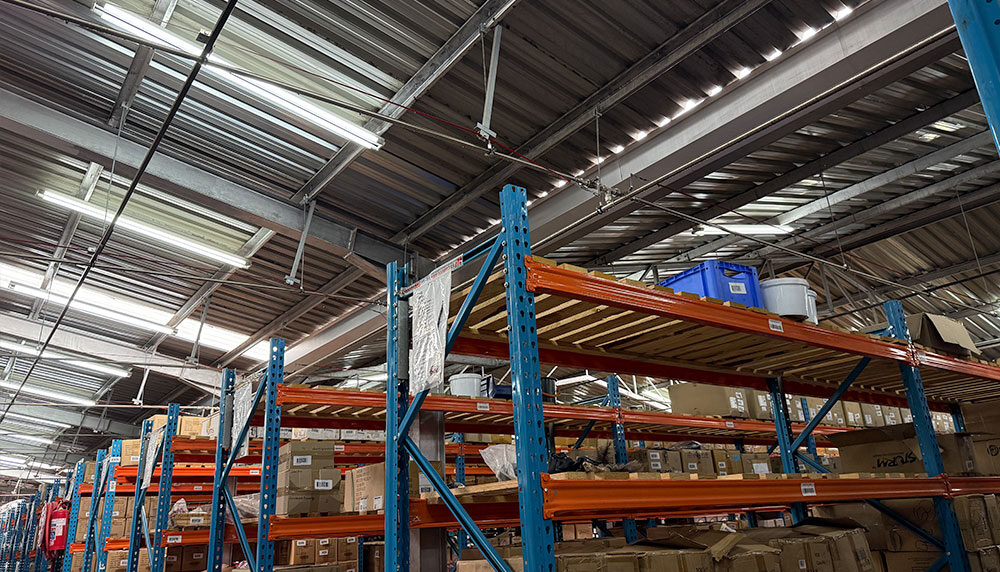

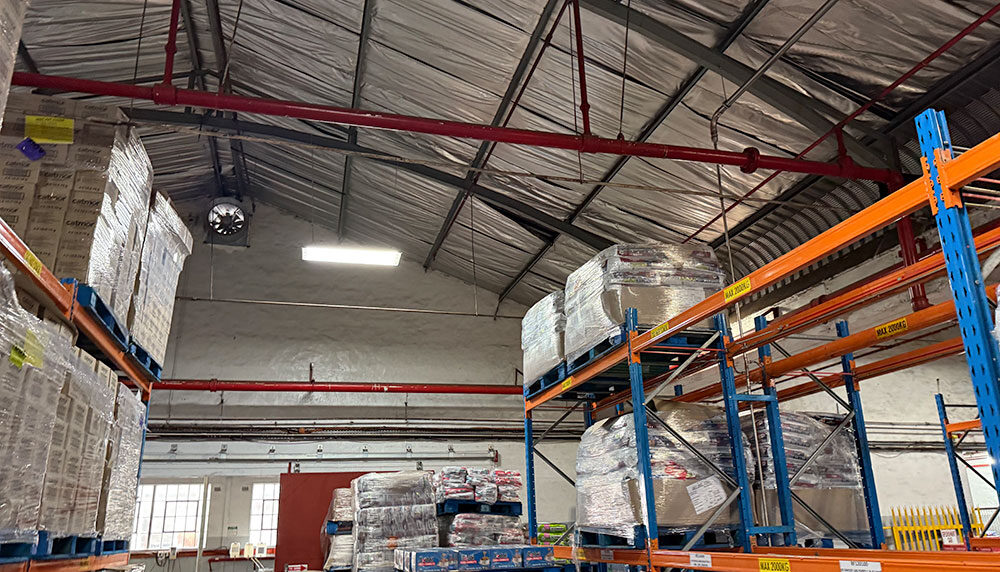

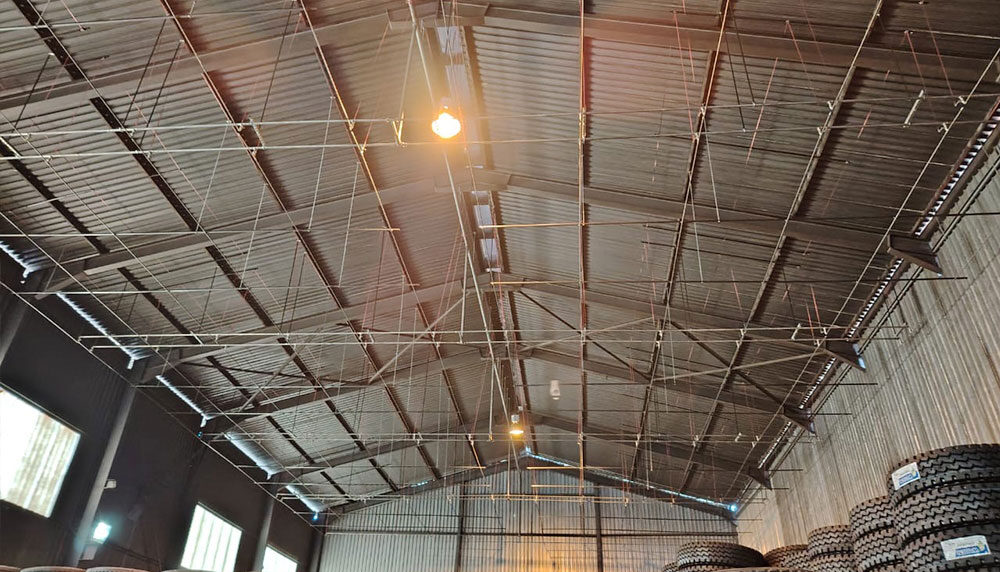

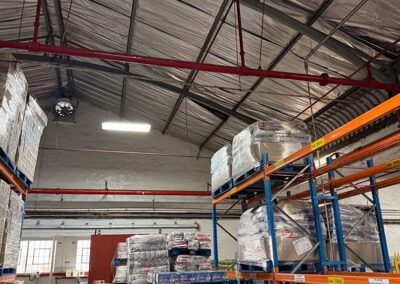

TSS Roof System

Advanced Fire Protection for Free-Standing Goods & High-Risk Spaces

raditional roof sprinkler systems have long been the only solution for protecting free-standing goods, open warehouse spaces, and movable racks. However, conventional water-based sprinkler systems come with inefficiencies – high water consumption, delayed activation and limited suppression effectiveness.

Fire Design House has redefined roof-based fire suppression with the TSS Roof System, an innovative Tri-Fluid spray solution that enhances fire control efficiency by 600% while significantly reducing water usage.

Why the TSS Roof System is Superior

✔ Precision-Based Fire Protection – Unlike traditional sprinklers, the TSS Roof System is based on Rational Fire Design (BS 7974), ensuring a scientifically engineered, performance-driven approach to fire safety.

✔ Tri-Fluid Technology: 600% More Efficient – By incorporating a wetting agent into the water, our system increases fire suppression efficiency while drastically reducing the amount of water needed.

✔ Optimized Water Usage – The system ensures:

• Lower flow rates compared to conventional roof sprinklers.
• Reduced water damage, minimizing business downtime.
• Cost-effective water storage and distribution requirements.

✔ Durable & Low Maintenance

• Constructed from high-quality, corrosion-resistant materials, ensuring a longer operational lifespan than conventional sprinkler systems.
• Minimal mechanical components, reducing the risk of system failure.
• Annual servicing by a certified Fire Design House technician ensures continuous protection.

Ideal Applications

• Warehouses with Free-Standing Inventory – Protects goods that are not stored on fixed racks.
• Special Risk Facilities – Suitable for factories, logistics centres, and high-value asset storage.
• High-Risk Open Areas – Provides comprehensive roof coverage for large commercial spaces.

Certified Performance & Regulatory Compliance

• Designed in accordance with BS 7974, ensuring compliance with the latest Rational Fire Design principles.
• Optimized for real-world fire risk, based on thorough fire analysis and engineered solutions.
• Engineered for Efficiency
  The TSS® Roof System is rigorously tested at the Brandvlei test facility. The main aim is to achieve lower DESIGN DENSITIES, in some cases below 5mm/min/m². This means minimal water usage with maximum fire suppression efficiency, drastically reducing water damage risks and operational costs.

Upgrade your roof-based fire suppression strategy with the TSS Roof System—the next generation of efficient, scientifically designed fire safety solutions.

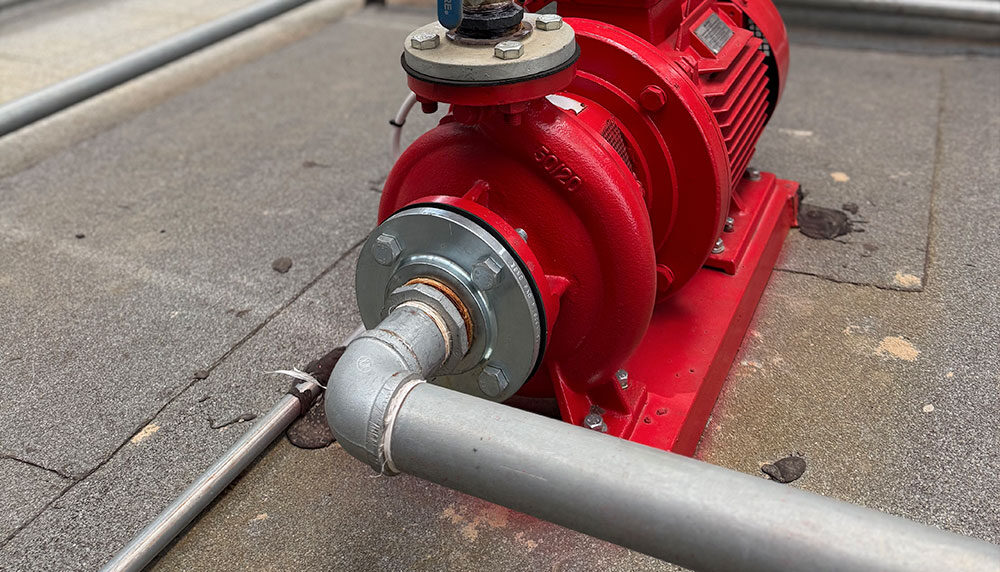

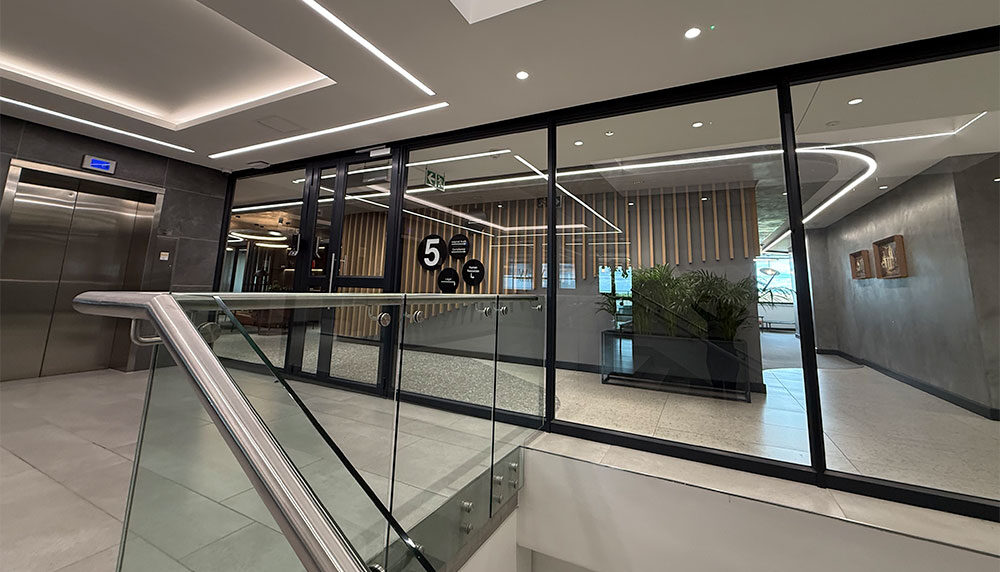

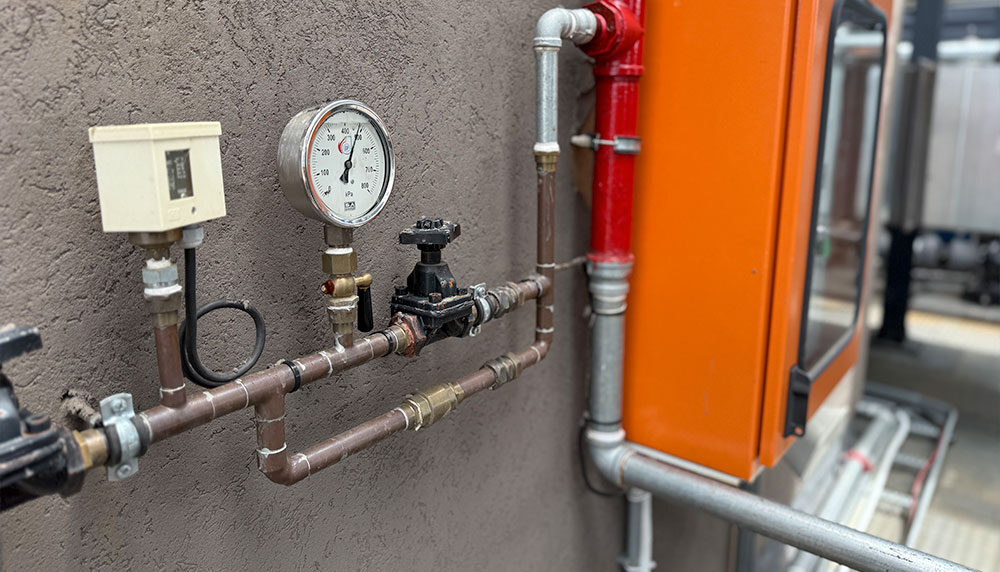

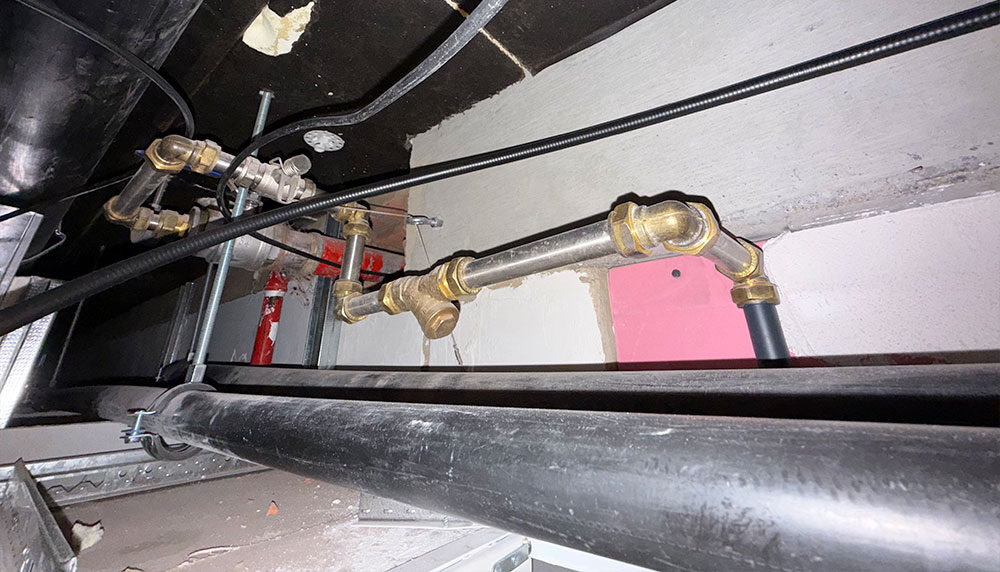

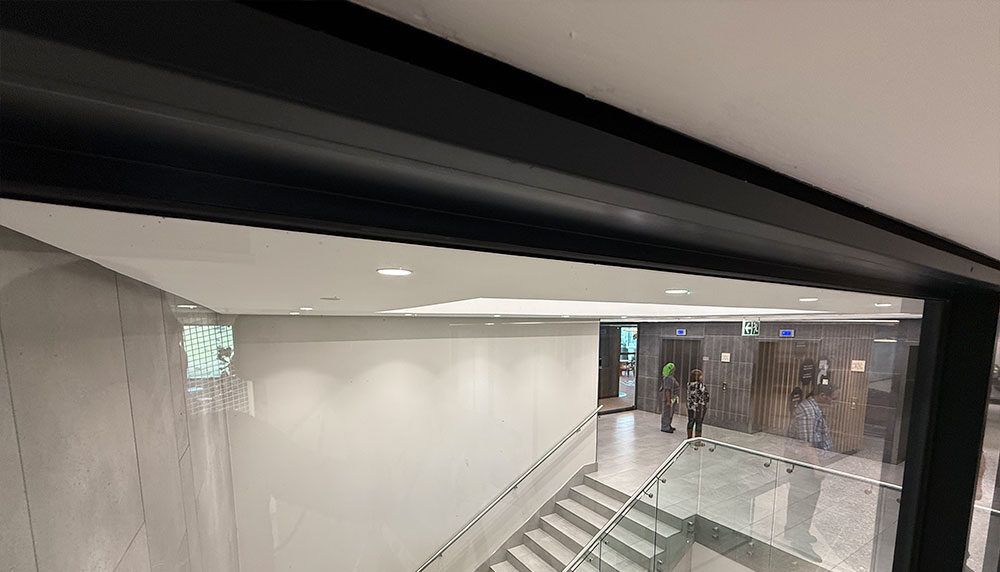

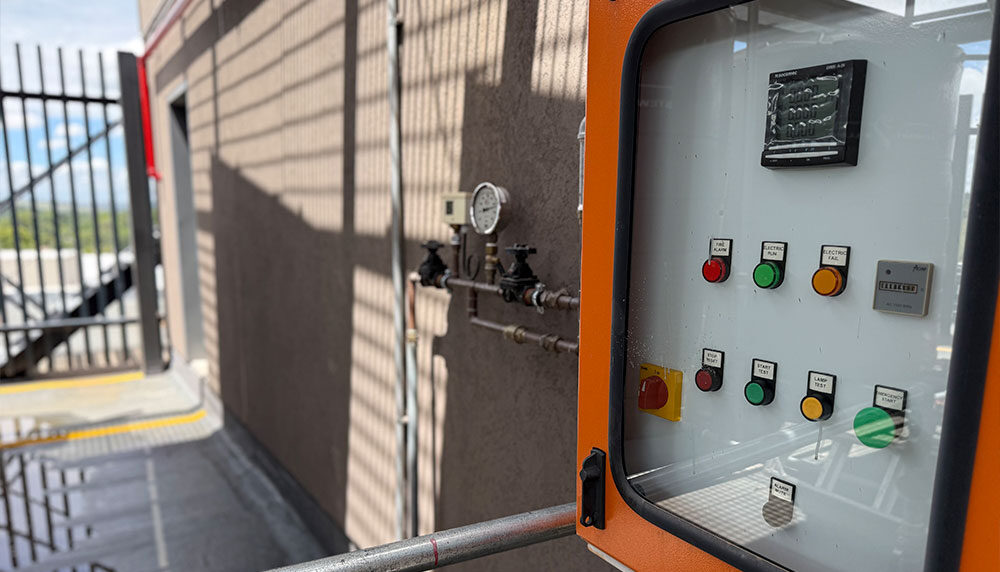

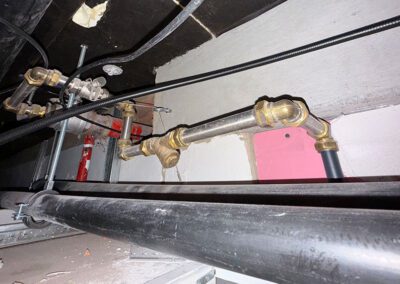

Drencher System

Transforming Glass and Other Smooth Surfaces into a Fire-Resistant Barrier

The Drencher System by Fire Design House is an innovative fire protection solution that transforms glass, corrugated iron, and panel surfaces into highly effective fire barriers. This system preserves visibility, aesthetics, and architectural freedom while delivering superior fire resistance.

Through a unique wetting agent application, the system prevents laminated glass from melting, shattering, or disintegrating in extreme heat conditions. No other product of its kind exists globally, making this a revolutionary fire safety innovation for commercial buildings, offices, showrooms, and apartment complexes.

Why the Drencher System is Superior

✔ Instant Fire Barrier Activation – The system applies a continuous film of water mixed with a wetting agent to the glass surface upon fire detection, effectively converting it into a fire-resistant shield.

✔ Uncompromised Architectural Aesthetics – Unlike Pyron glass, which is expensive and visually restrictive, our system allows for full visibility, natural light penetration, and the use of aluminium frames in any colour to match architectural designs.

✔ Advanced Early Detection System – Strategically installed near fire-prone areas, enabling rapid response and minimizing fire spread.

✔ Certified & Proven Performance – Successfully tested in accordance with SANS 10177 Part 2, ensuring up to 120 minutes of fire resistance, stability, and isolation.

✔ Mechanical & Maintenance-Friendly –

• Fusible link activation – triggers automatically at 72–74°C, requiring no electrical interfaces.

• Minimal maintenance – remains in an “always-on” state, with annual servicing by an FDH accredited technician.

Ideal Applications

• Lift Lobbies – Enhancing fire safety in commercial and residential buildings.
• Office & Showroom Entrances – Fire protection without compromising design.
• Basements & Industrial Spaces – Providing a clear, protective fire barrier.

Discover how the Glass Drencher System can seamlessly integrate into your building design while providing unmatched fire protection.

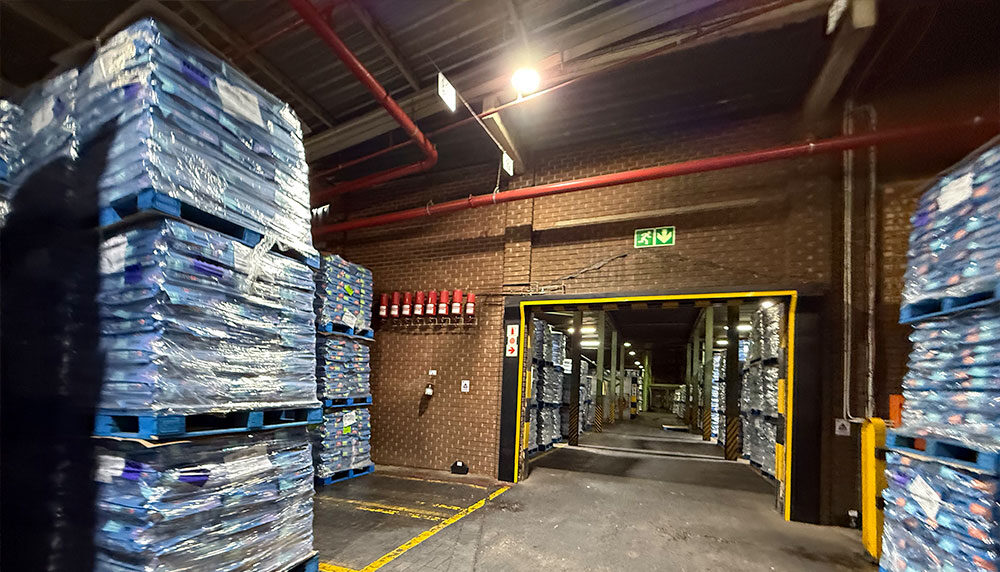

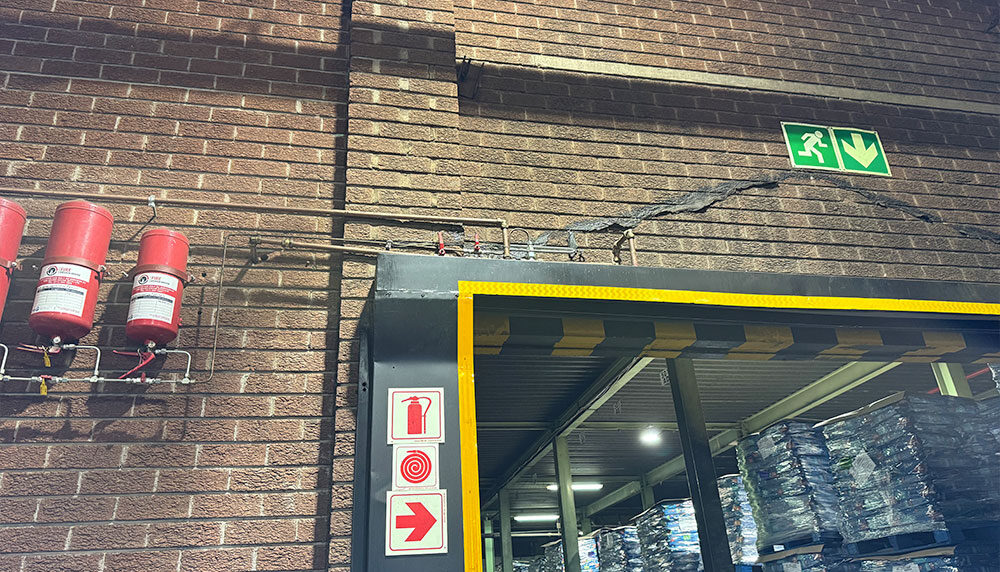

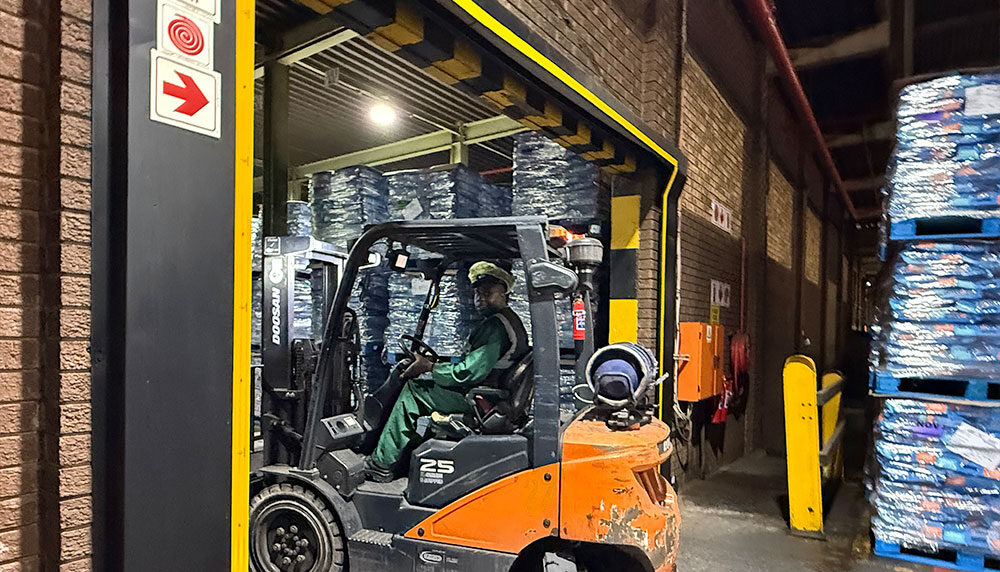

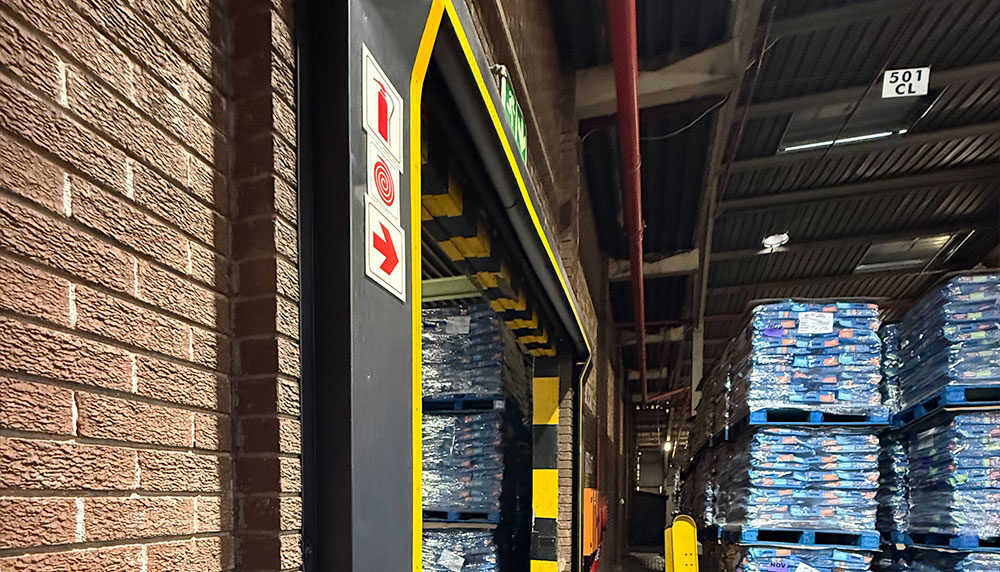

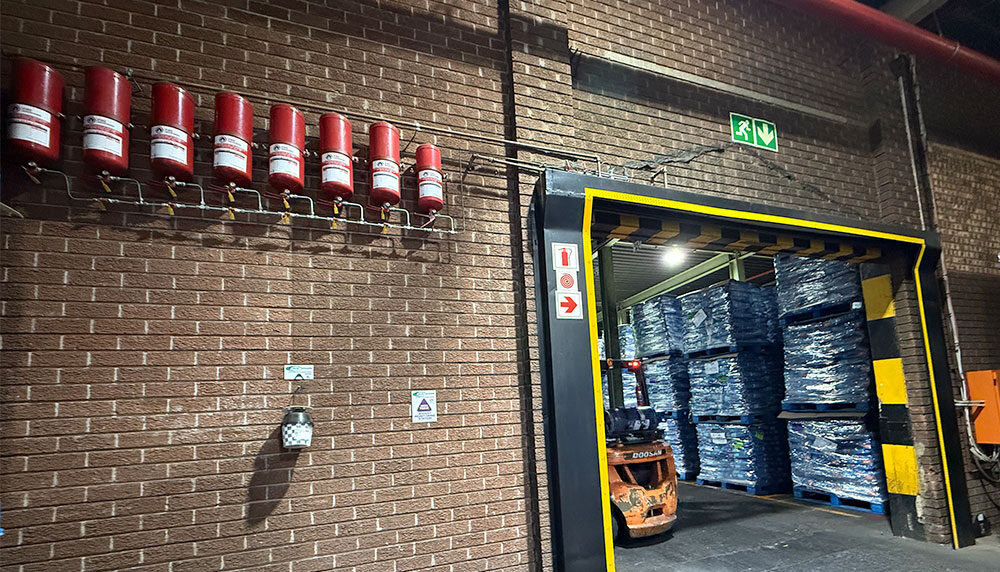

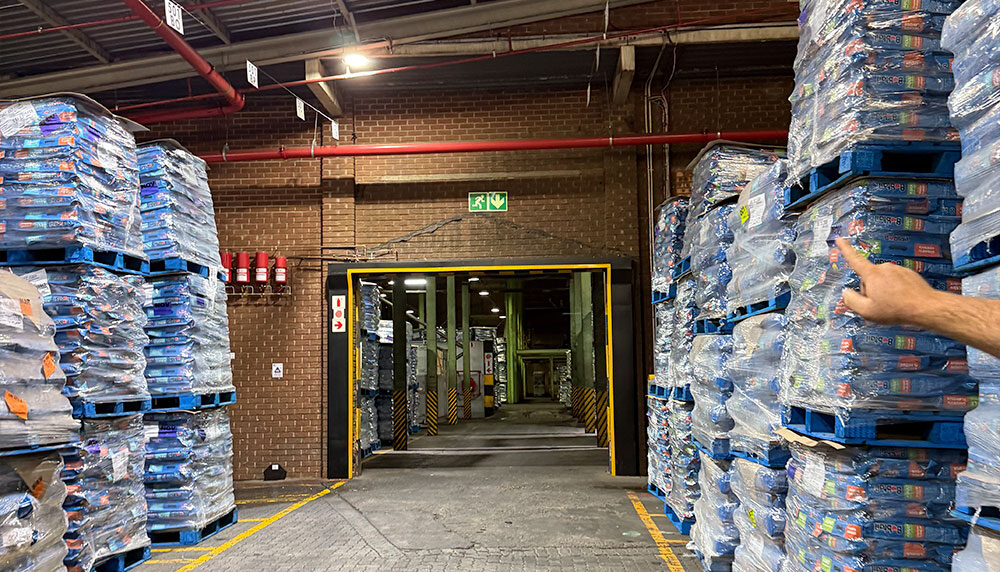

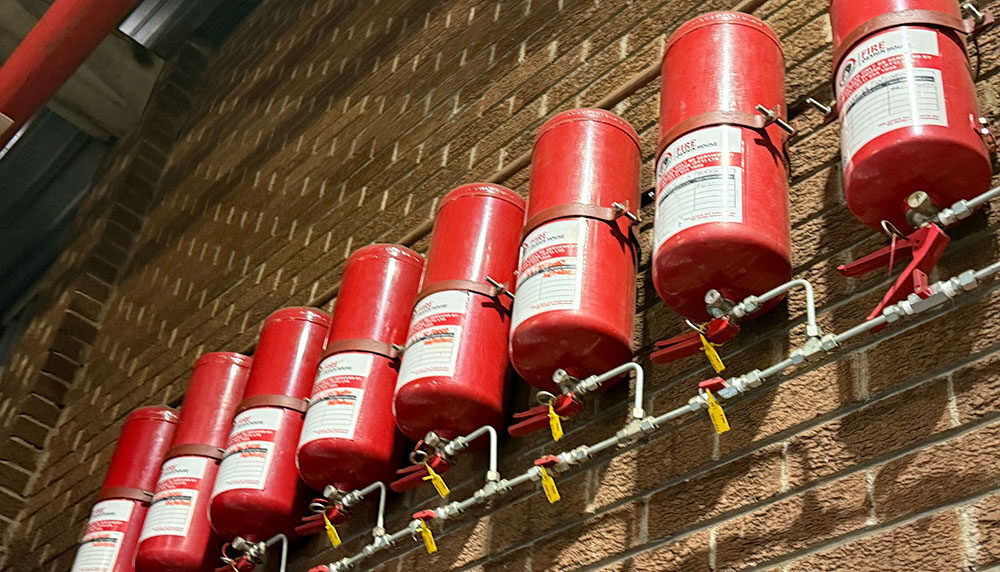

Wet Fire Curtain

A Patented Fire Barrier for Uncompromised Safety

The Wet Fire Curtain by Fire Design House is a revolutionary fire barrier that provides up to 120 minutes of fire resistance, outperforming conventional solutions by offering integrity, stability, and isolation in a single system. Unlike bulky fire doors that restrict movement, this hidden fire barrier deploys only when needed, maintaining aesthetic appeal and unimpeded access in normal conditions.

Using a unique wetting agent application, the system rapidly cools the fire-exposed surface, preventing flames from spreading while absorbing heat. No other product on the market delivers this level of protection, making it ideal for commercial, industrial, and high-risk environments.

Why the Wet Fire Curtain is Superior

✔ Patented Fire Resistance Technology – Delivers 30 to 120+ minutes of certified fire containment.
✔ Automated Deployment – Deploys via gravity or motorized activation upon smoke or heat detection.
✔ Unmatched Protection – The only product offering integrity, stability, and isolation, compared to alternatives that provide only stability and isolation.
✔ Discreet & Aesthetic – Remains hidden when not in use, seamlessly integrating into modern architectural designs.
✔ Minimal Maintenance – Fusible link activation ensures reliable, mechanical operation with no electrical dependencies.

Ideal Applications

• Workshops & Factories – Fire barriers without restricting access.
• Lift Lobbies & Basements – Protect occupants while allowing safe exits.
• Showrooms & Retail Spaces – Unobtrusive fire protection for open-plan areas.
• Mines & High-Risk Facilities – Enhanced safety in industrial environments.

Upgrade Your Fire Protection Strategy

Ensure unparalleled fire containment and architectural freedom with the Wet Fire Curtain—engineered for the future of passive fire protection.

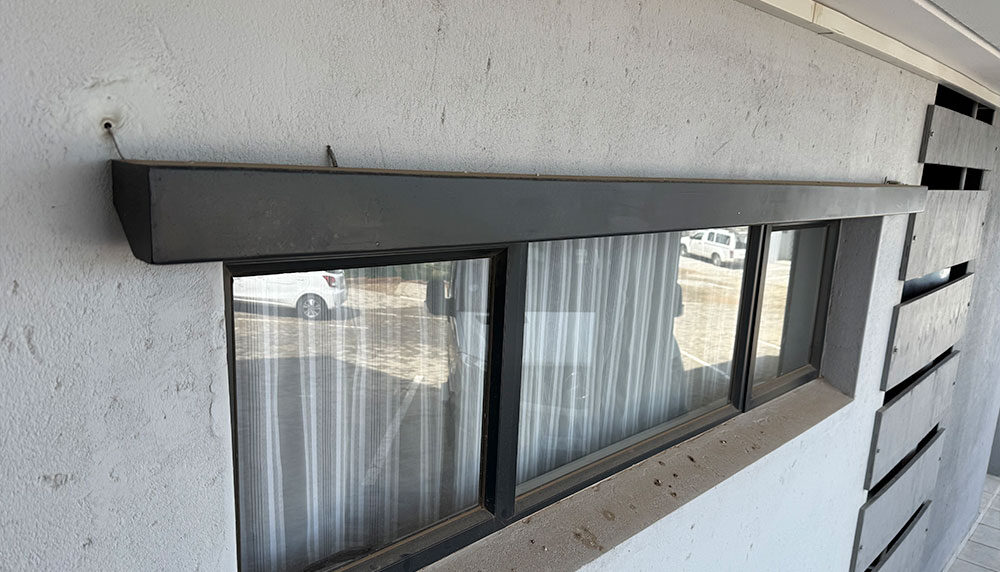

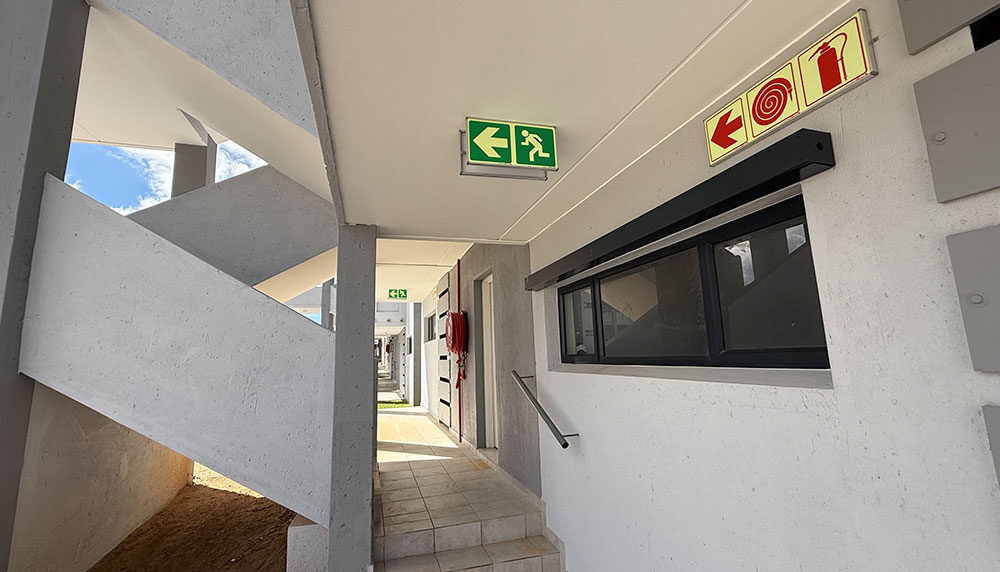

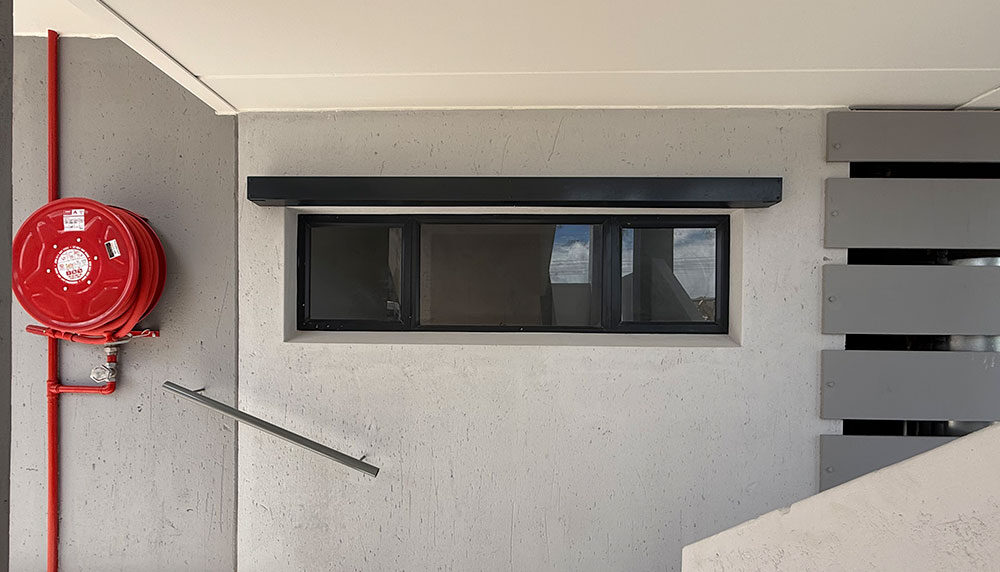

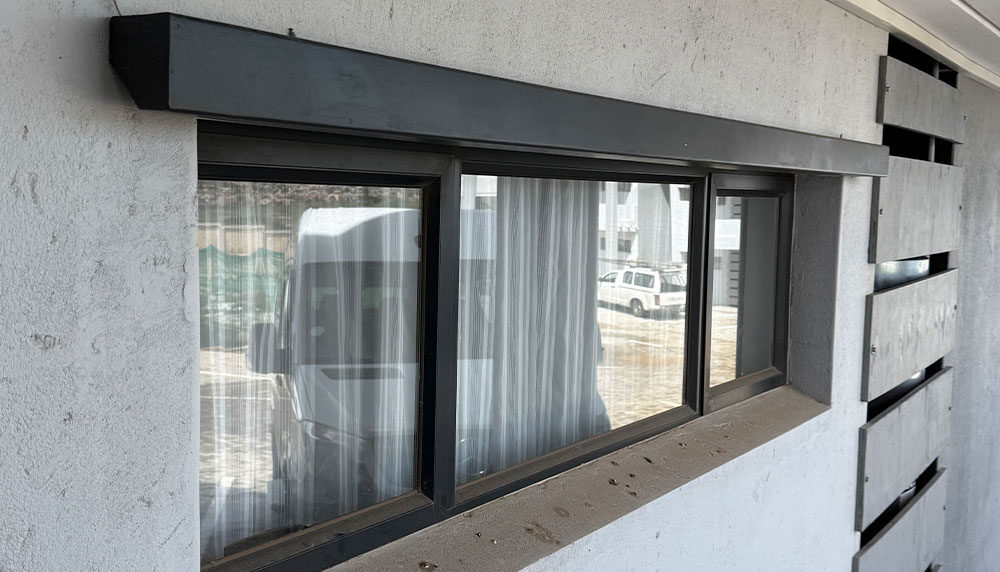

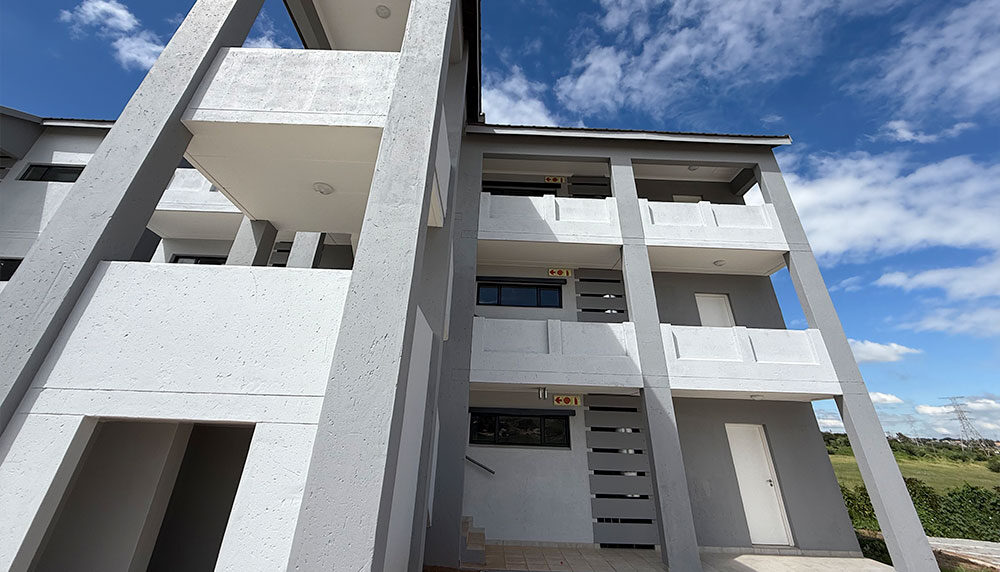

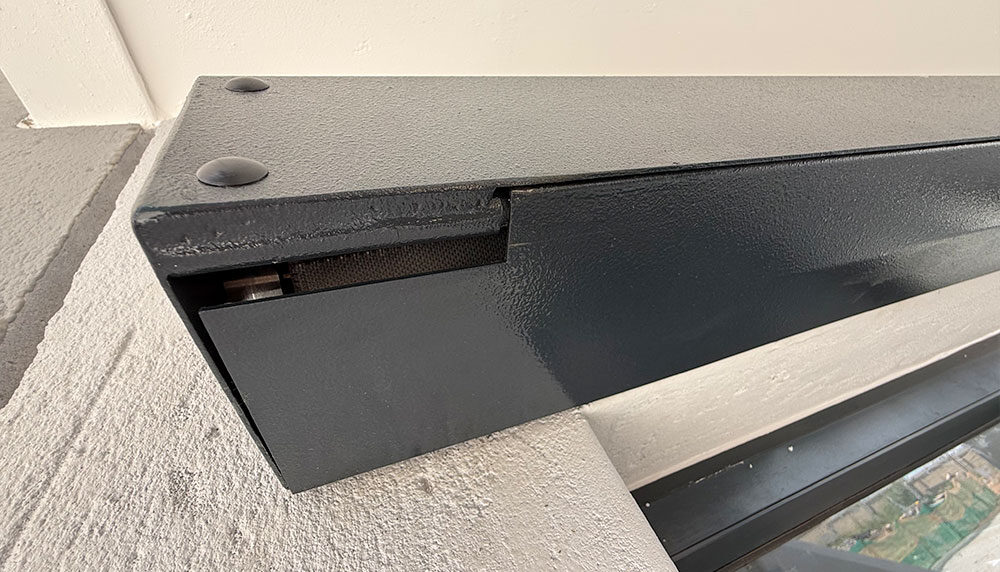

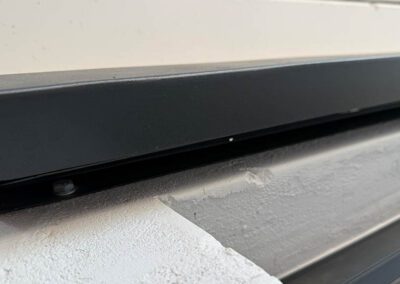

Dry Fire Curtain

Seamless Passive Fire Protection Without Water Dependency

Why the Dry Fire Curtain is Superior

✔ Passive Fire Protection – Limits the spread of fire and smoke between critical areas.
✔ Automatic Deployment – Deploys via gravity or motorized activation upon smoke or heat detection, ensuring rapid response.
✔ No Water Required – Unlike wet fire suppression systems, the Dry Fire Curtain functions without water, making it ideal for buildings where water supply limitations exist.
✔ Discreet & Aesthetic – Remains hidden in non-fire conditions, blending seamlessly into modern architectural designs.
✔ High Durability & Minimal Maintenance – Built with non-corrosive, fire-resistant materials, ensuring long-lasting reliability with minimal servicing.

Ideal Applications

• Commercial & Office Buildings – Fire barriers without obstructing open-plan layouts.
• Retail & Showrooms – Protects against fire while maintaining design integrity.
• Hospitals. Flats. Apartment Blocks & Educational Institutions – Ensures safe evacuation pathways without water damage concerns.
• Industrial & Manufacturing Facilities – Adds essential passive fire control in high-risk environments.

Upgrade Your Fire Containment Strategy

Ensure seamless fire protection with the Dry Fire Curtain—designed for maximum containment, reliability, and architectural flexibility.

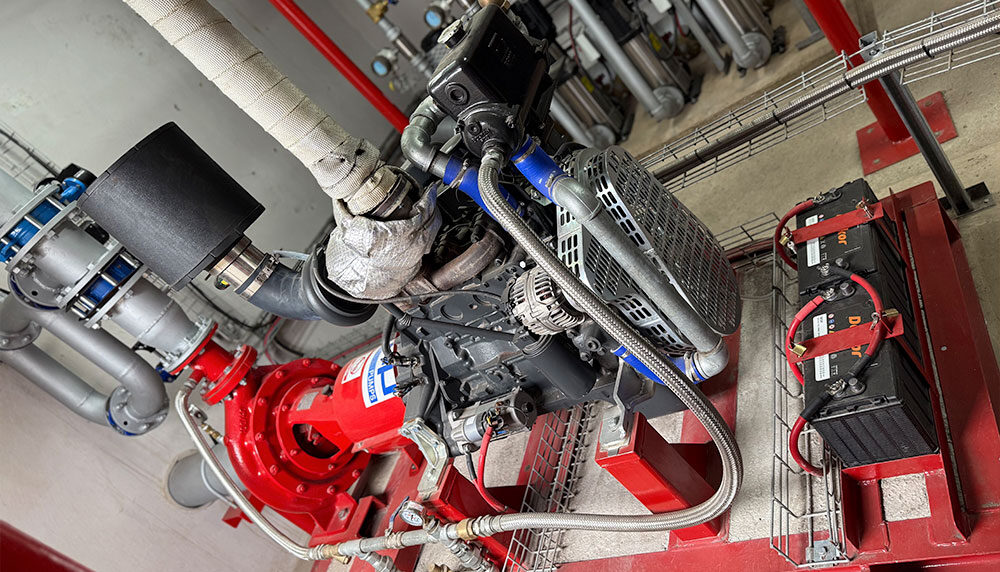

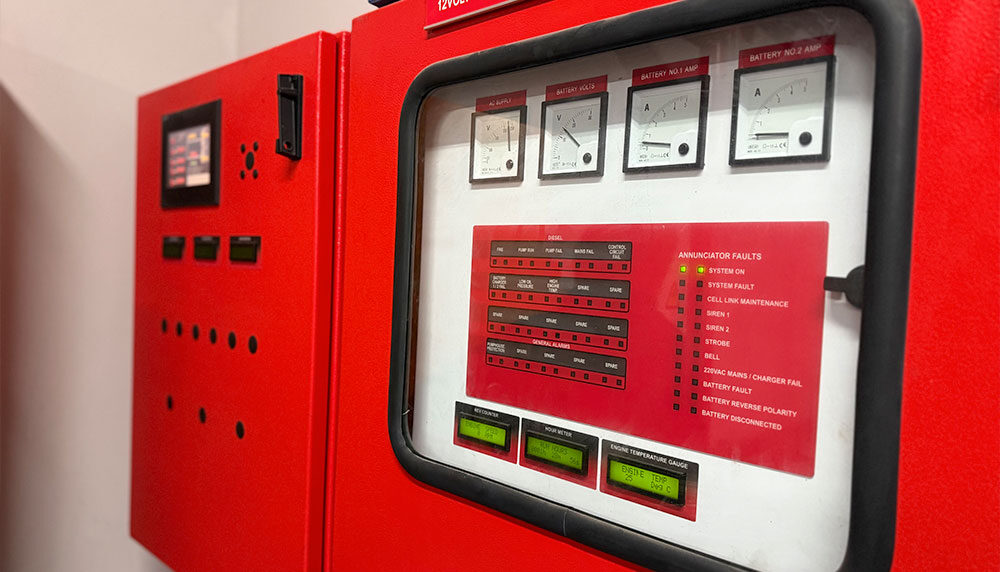

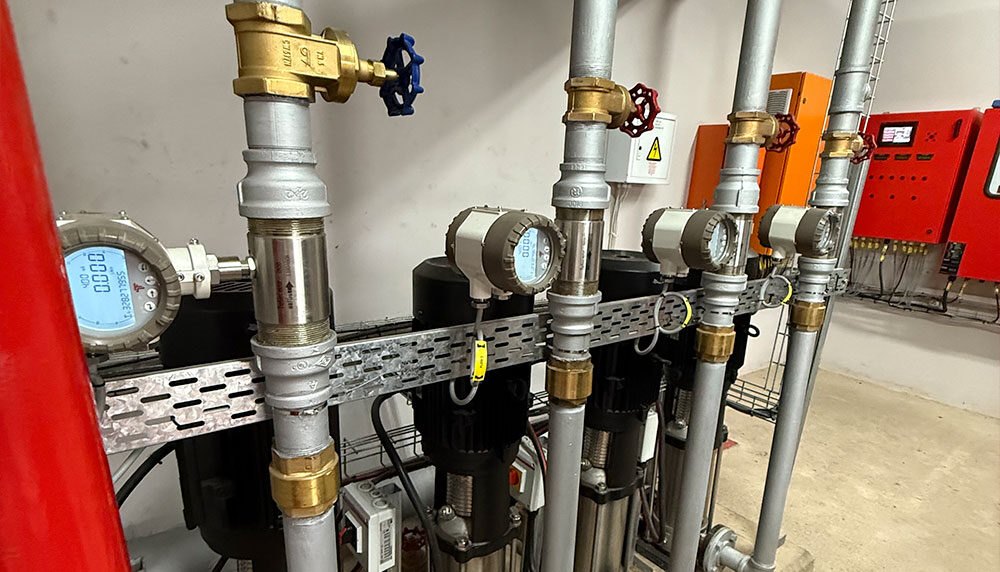

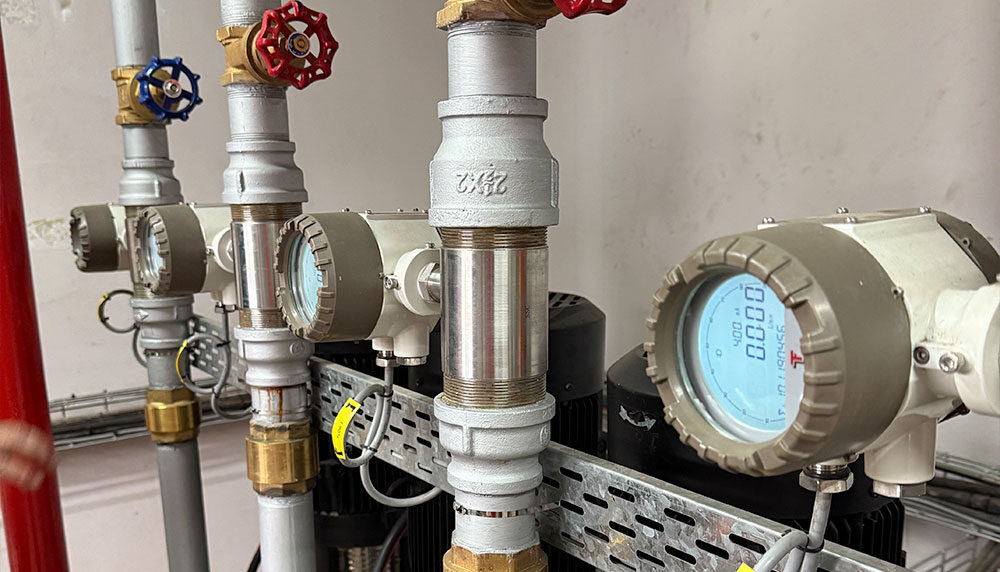

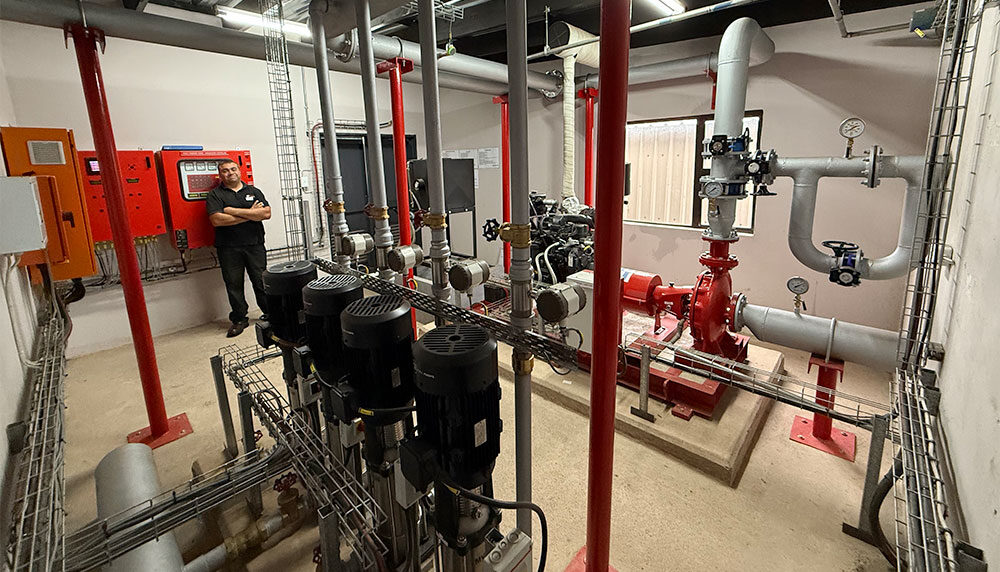

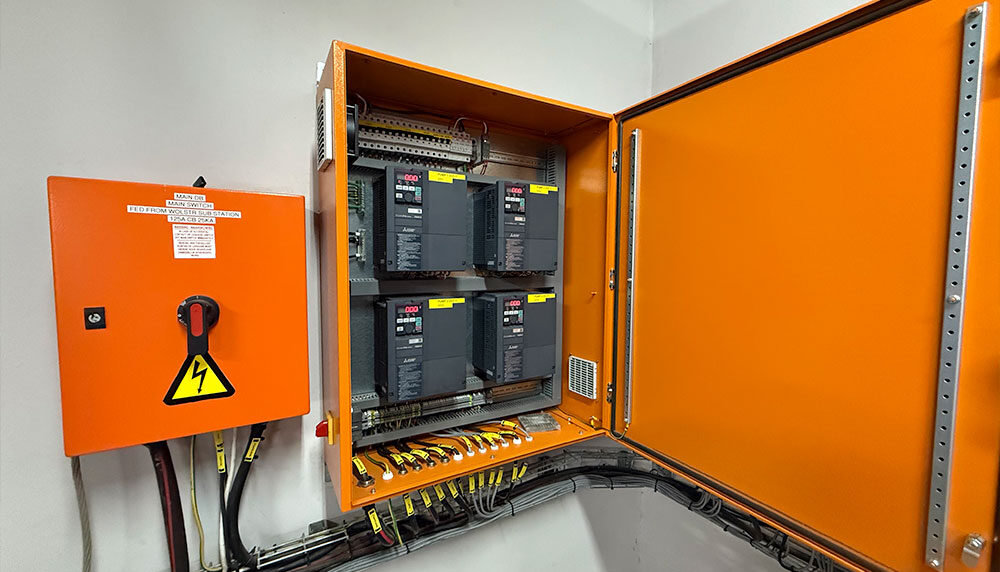

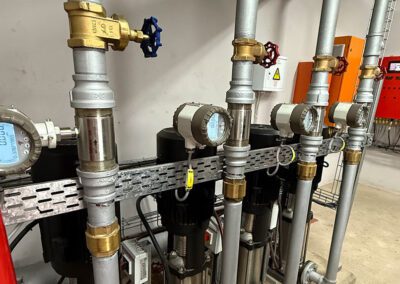

Advanced Water Supply Pump House Automation Solutions

Intelligent Fire Safety Integration for Maximum Protection

Designed to integrate effortlessly with FDH’s cutting-edge fire suppression and containment systems, our automation technologies create fully synchronized fire safety ecosystems, enhancing real-time monitoring, activation, and system performance.

Why FDH’s Advanced Automation Solutions are Superior

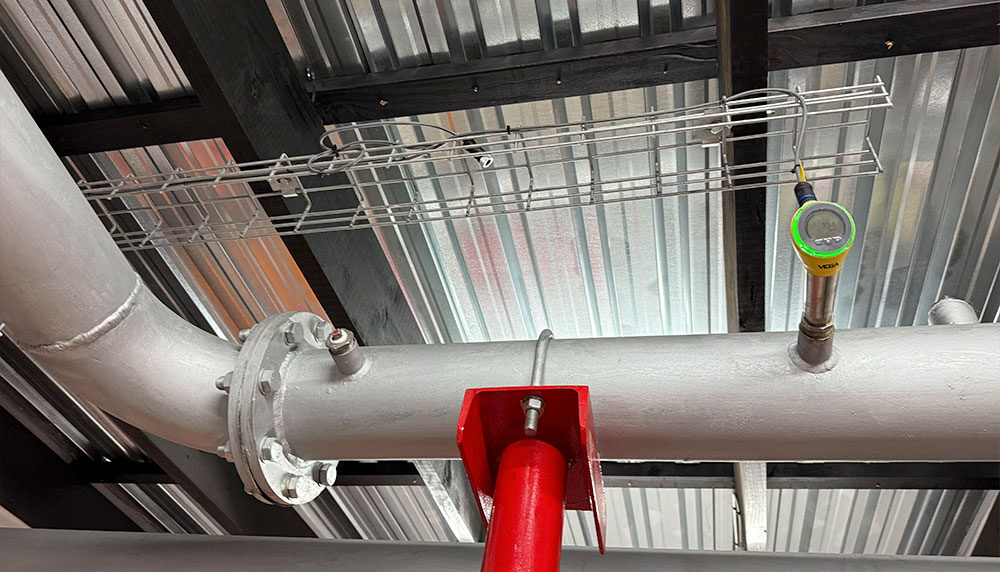

✔ Pump House & Water Supply Automation – Automatically regulates pressure, flow, and readiness in water supply systems, ensuring immediate response and sustained performance.

Ideal Applications

Upgrade to Smarter Fire Safety Solutions
